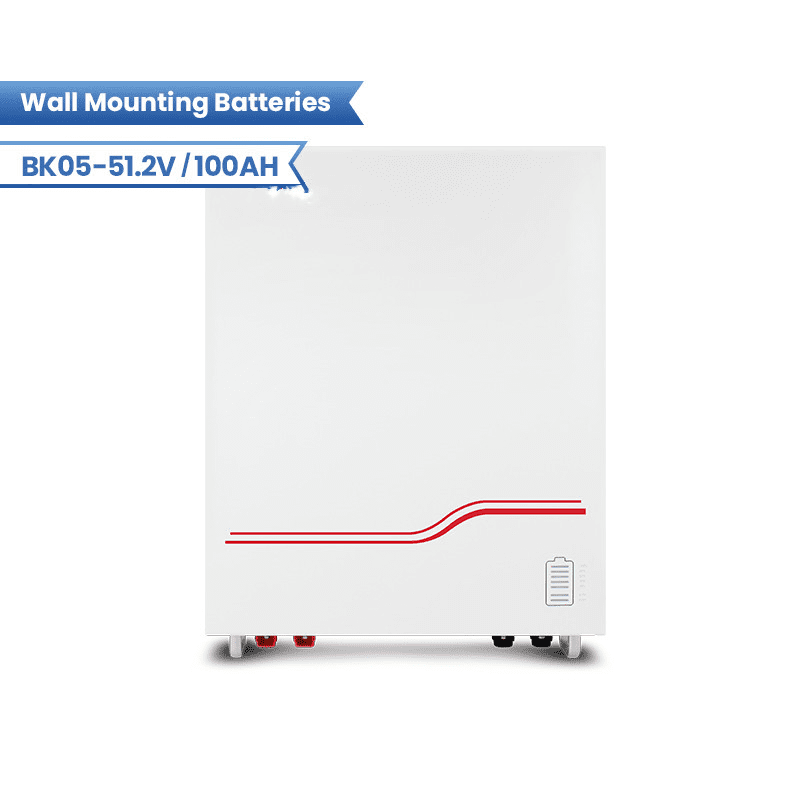

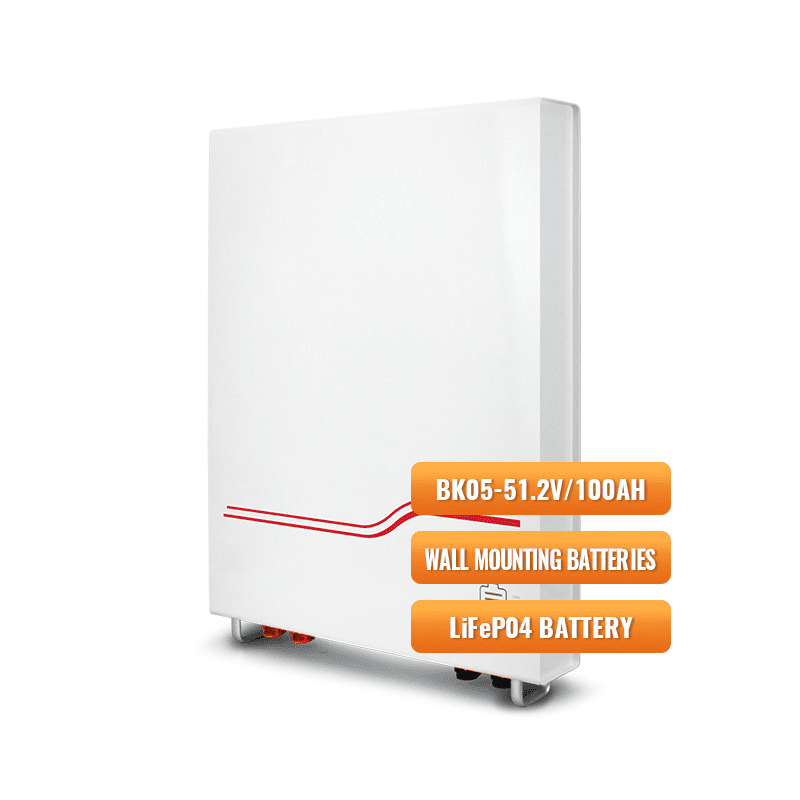

Residential battery memory portable mobile energy storage
Details:
EAN:6975913481670
SKU: PSBK05-001. Residential battery memory
Series and parallel connection mode: 16S1P
Nominal capacity: 100Ah
Nominal voltage:51.2V
Comunication RS232/485/CAN
Cycle: 3000times (standard power)
Cycle: 6000times (optional power / reference price)
Entrance protection: IP65
Operating voltage is range:40〜58.4V
Operating temperature (charging): 060℃ 90% ROH
Operating temperature (Discharge): -2060℃ 90% ROH
Standard charging constant current charge: 50A
Charge the voltage:58.4V
Cut-off current: 5A
maximum-continuous
Charging current constant current charge: 100A
Charge the voltage:58.4V
Cut-off current: 5A
Standard discharge Constant current discharge: 50A cut-off voltage: 40V
maximum-continuous
Discharge current constant current discharge: 100A cut-off voltage: 40V
Storage temperature: -20~60℃
Cycle life: capacity decay to 80 AH, cycle number, 6000
Monthly discharge
<3.5% per month
Monitoring and communication: RS232 / RS485 / CAN
Balance method: passive equilibrium
Shipping Capacity: SOC3070% (TBD)
remarks:
Standard charge and discharge mode test
Temperature range: -20 Subur65℃
Maximum unit of voltage:3.65V
Maximum unit of voltage:3.65V
The al monomeric voltage:2.5V
Minimum single-cell voltage: 2.5V
Storage environment humidity: 95% ROH, no condensation.
90% DOD, @25 ± 2℃, standard charge and discharge mode
Three months after shipment
The battery will be charged to 40% SOC and stored at @25 2℃
product features
Ultra-thin wall-mounted home memory design, beautiful
Atmosphere, perfectly integrated into the family environment.

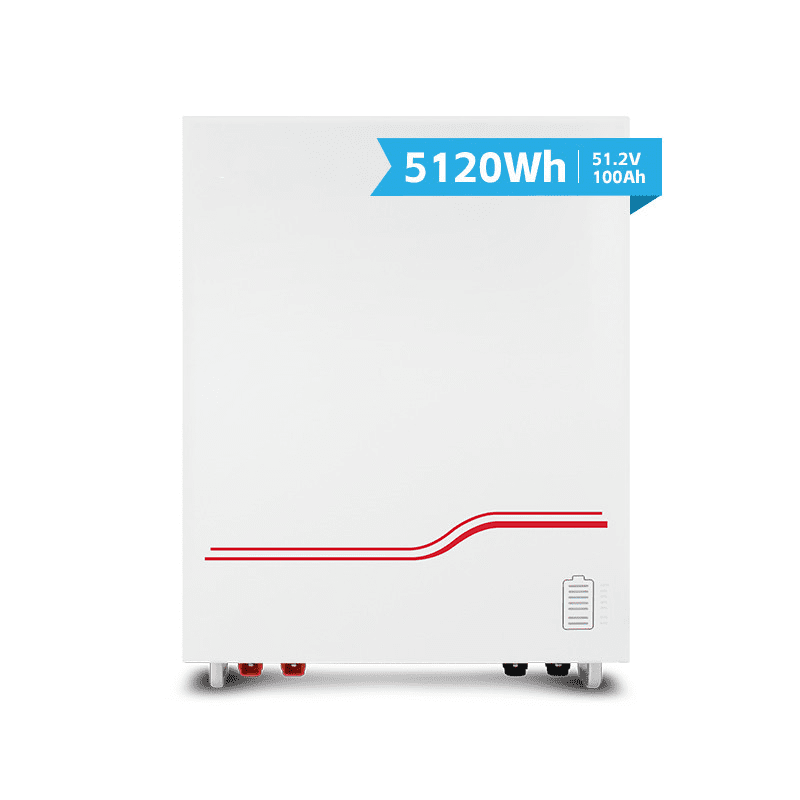

5120Wh
Built-in high-stability BMS system with protection
Over-charge, over-discharge, overcurrent, high temperature, low temperature and other functions.
Support up to 16 groups of parallel operation, which can cope with the long-term electricity environment.
Adapt to the market mainstream brand inverter, to provide users with more choices.
Information on the product
keyword
Generators and portable power supply, electronics, generators, power inverter, photovoltaic charging business backpack, photovoltaic charging sports backpack, solar power hiking backpack, solar power leisure backpack, solar power travel backpack, solar power outdoor backpack, Solar and wind power, generator accessories, portable power station, solar generator, ac power supply, backup battery power, trip camping emergency power, portable solar panels, folding solar charger, photovoltaic power supply, generator and portable power, outdoor solar energy storage, photovoltaic housing energy storage inverter, photovoltaic micro inverter, grid hybrid inverter, wall-mounted inverter, portable mobile energy storage, stacked energy storage
Carton Size (L*W*H): 700*570*110mm
N.W :43kg
G.W:50 kg
